New Never Used 2021 VDE Machines Wire Cut System

Extruder-wire cut machine, 1200mm wide, full servo:

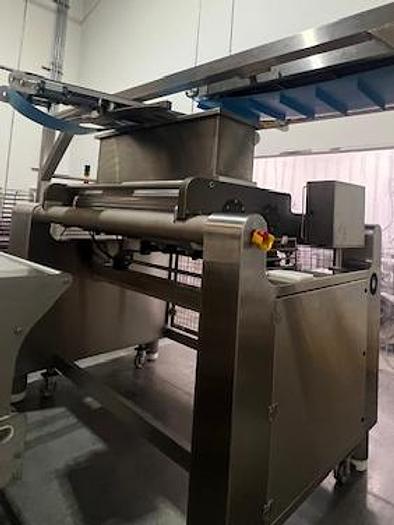

A complete Servo-electro single head wire cut extruder for an oven band of 1200mm wide.

Solid 1.5” side plates hold very heavy-duty stainless-steel feed rolls. Both feed-rolls individually driven by AB Rockwell Servo motors and top-of-the line gear boxes.

The feed rolls are provided with “saw-tooth” grooves for superb feed by slow rotation.

At either end of the rolls sets of V-grooves are machined in the outside diameter. Delrin seals, easy to remove for thorough cleaning, fit in these grooves, providing clean and accurate production, shift after shift.

For accurate extruding, the machine is provided with a Delrin filler block. This block is simple to remove yet provides for excellent roll scraping.

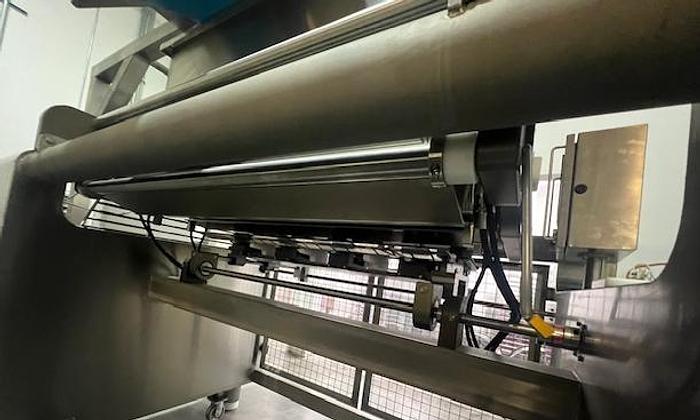

The machine is provided with a double servo driven wire cut attachment.

Different than known machines, our wire cut attachment is driven by two independently controlled servo motors with top quality servo-gearheads.

One servo drive is for the forward motion of the harp with wire, one serve drive is for the wire drop motion.

Independently both motions can be “designed” by the customer and stored in a recipe in the HMI of the machine.

For different products, the best cutting-, drop and retract motion can be created. TECHNICAL DATA:

Oven band width       1200mm

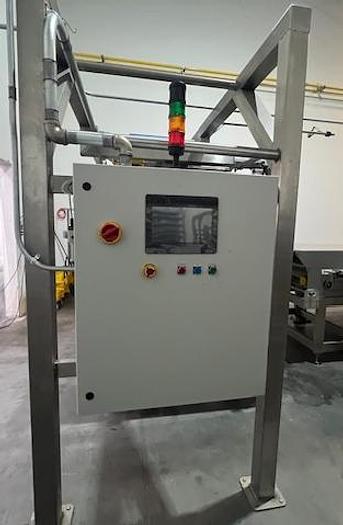

Control panel Integrated Nema 4X

PLC    AB Rockwell

Inverters        AB Rockwell

Servo drives   AB Rockwell

Operator Interface     AB Rockwell,10” color touch screen

Wash down, all stainless steel
